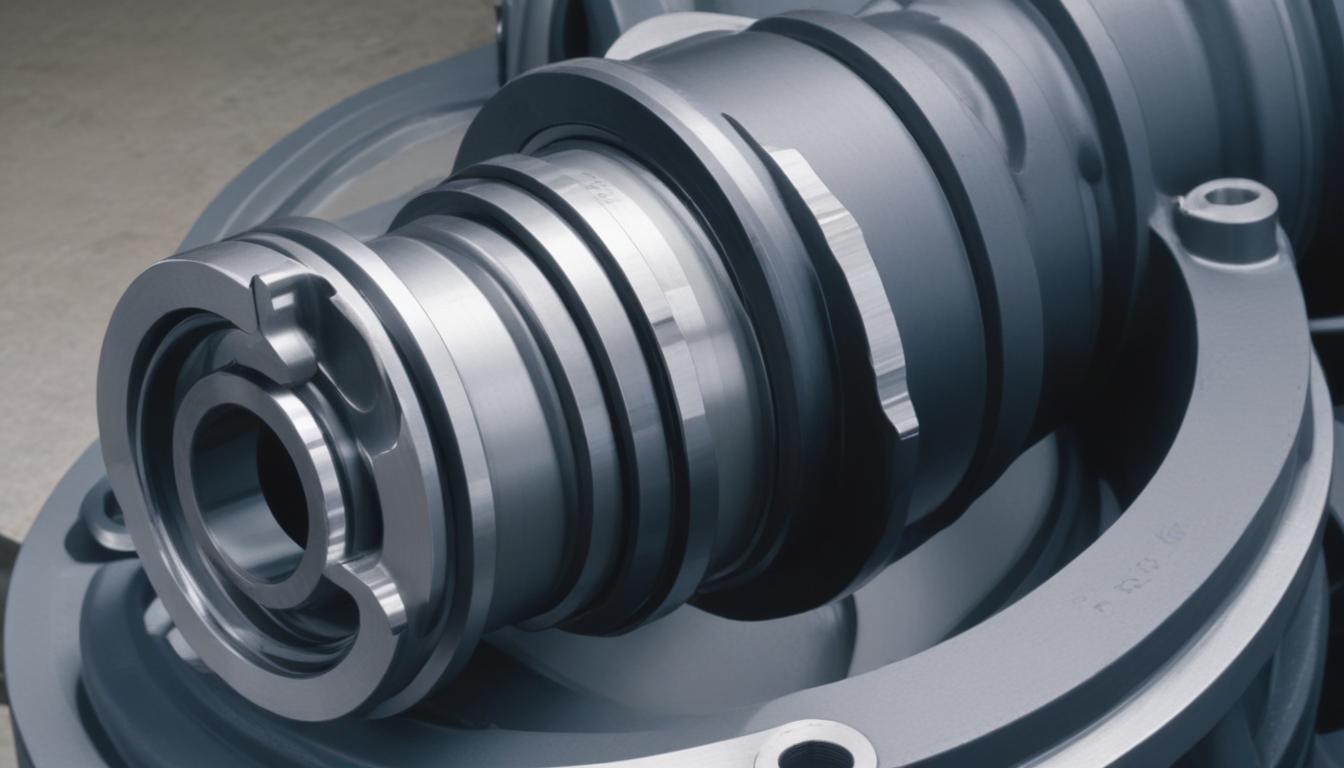

Mechanical seals are essential components in ensuring the efficient operation of *pumps*. They are designed to prevent the leakage of fluids in various industrial applications, providing a critical barrier between the rotating shaft and the stationary pump casing. Understanding how mechanical seals work is vital for effective *pump selection* and ensuring long-term reliability.
At the heart of a mechanical seal is a pair of sealing faces that come into contact with each other. These faces are typically made of materials such as carbon, ceramic, or tungsten carbide, and are responsible for maintaining a leak-proof environment. A static part of the seal is mounted in the pump casing, while the rotating part is attached to the shaft. When the *pump* operates, the rotating element spins against the stationary face, creating a seal that withstands the pressure of the fluid being pumped.
A well-designed mechanical seal minimizes friction and wear, which prolongs the life of the *pump*. The sealing faces need to be properly lubricated to reduce heat and wear, which is typically achieved through the fluid being pumped itself. In some cases, external lubricants may be required, particularly for highly viscous or abrasive fluids.
In addition to preventing leaks, mechanical seals help protect the *pump* from other operational issues, such as cavitation, which can lead to significant damage. Properly functioning mechanical seals are critical for maintaining the efficiency and effectiveness of various types of industrial *pumps*, including centrifugal, gear, and diaphragm pumps.
When selecting mechanical seals, it is important to consider factors such as:
- Operating conditions (temperature and pressure)
- Type of fluid being handled
- Required seal material compatibility
- Expected lifespan and reliability needs
- Cost considerations and budget constraints
By understanding how mechanical seals work in conjunction with *pumps*, operators can make informed decisions that enhance performance and extend equipment life.

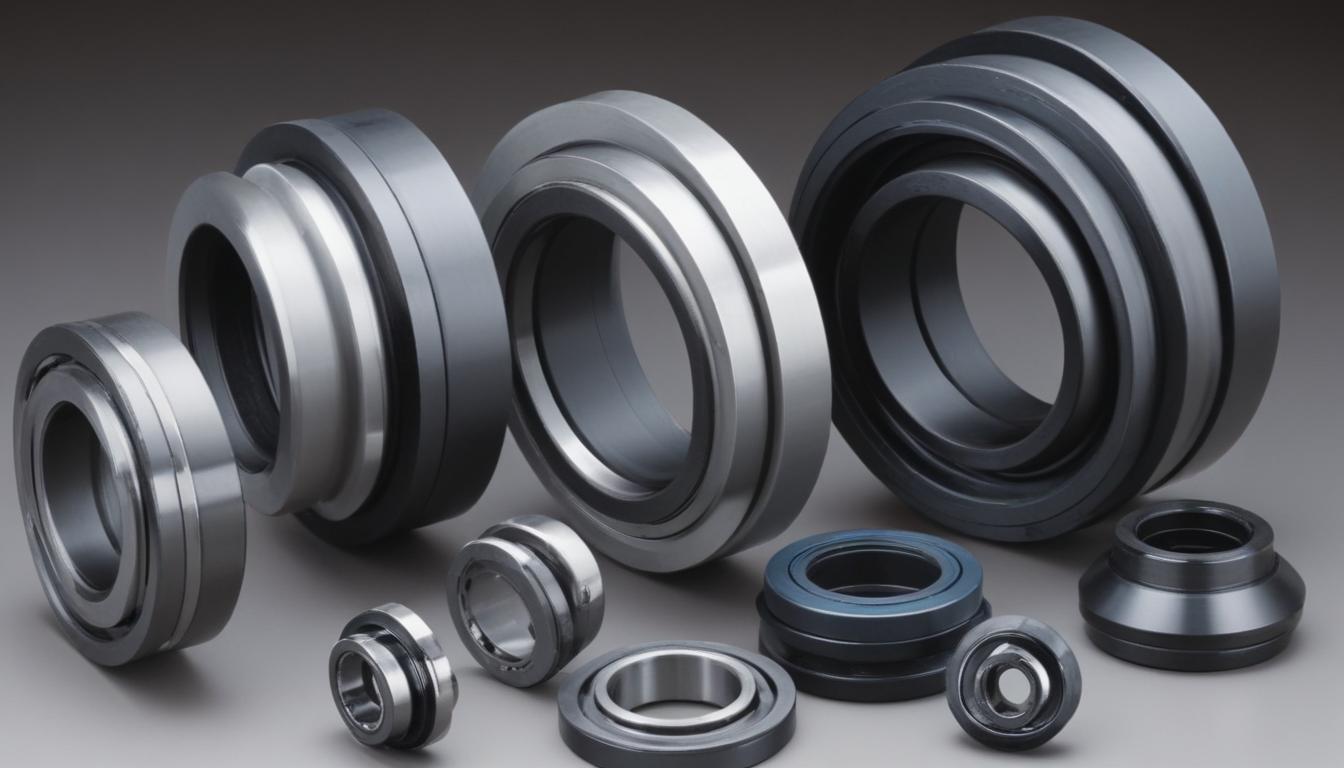

Types of Mechanical Seals
There are several types of mechanical seals, each designed to suit different applications and operating conditions. Understanding these types can greatly influence your pump selection and ultimately the efficiency of your system. The main types of mechanical seals include:
| Type of Mechanical Seal | Description | Best Applications |
|---|---|---|
| Single Spring Seal | A basic design featuring a single spring that applies constant pressure on the sealing faces. These are simple to install and maintain. | Standard water services, low-pressure applications. |
| Double Spring Seal | Comprises two springs which provide balanced pressure on the sealing faces. They are more robust than single spring seals. | Higher pressure and temperature applications, such as in chemical processing. |
| Turbo Seals | Designed for high-speed operations, turbo seals incorporate advanced engineering to minimize wear. | High-speed centrifugal pumps for water and liquid food applications. |
| Cartridge Seals | These seals come pre-assembled, which allows for easier installation and removal. They contain all the necessary components in a single unit. | Industrial pumps requiring high reliability and low maintenance. |
| Hydraulic Seals | These seals use hydraulic principles to enhance sealing performance, especially under changing pressure conditions. | Applications with fluctuating pressures and temperatures, such as oil and gas extraction. |
Each of these mechanical seals has its advantages and limitations. For instance, while single spring seals may be economical, they might not perform as well under higher pressure conditions compared to double spring seals. Cartridge seals provide installation convenience but can be more costly than traditional seals.
When making your pump selection, consider the environment and the specifications of the fluids being handled. The compatibility of seal materials with the pumped fluid is crucial to prevent premature failure. Additionally, the operational conditions, such as pressure fluctuations and temperature variations, should be accounted for when choosing the right type of mechanical seal.
Industrial pumps often require specific sealing solutions tailored to their operational dynamics. Mechanical seals must not only maintain a secure barrier against leakage but also enhance overall pump performance by reducing wear and tear on the various components. Evaluating the different types of mechanical seals in relation to your pump requirements will ensure you choose the most suitable option for your application.
Factors to Consider When Selecting a Mechanical Seal
When selecting the right mechanical seal for your application, there are several critical factors that must be taken into account to ensure optimal performance and reliability of your *pump*. Understanding these considerations will enable you to make a better-informed choice, thus minimizing potential issues and extending the life of your *pump* and mechanical seals.
Operating Conditions
The first aspect to consider is the operating conditions of your *pump*. This includes:
- Temperature: Mechanical seals are available in various materials that can withstand different temperature ranges. Identifying the maximum and minimum temperatures your *pump* will encounter is crucial in selecting a seal that will perform consistently without degrading.
- Pressure: The pressure at which the *pump* operates directly influences the required sealing capability. It’s essential to match the mechanical seal rating to the expected maximum pressure to prevent leakage and seal failure.
Type of Fluid
Next, consider the type of fluid being handled by the *pump*. This factor is vital for ensuring material compatibility of the mechanical seals. Factors to evaluate include:
- Chemical Composition: Fluids can be corrosive, viscous, or abrasive. Ensure that the seal material chosen is resistant to the specific chemicals in the fluid.
- Temperature Sensitivity: Certain fluids can change characteristics at high or low temperatures. Therefore, the seal must maintain effective sealing properties under varying conditions.
Seal Material Compatibility
The material from which the mechanical seal is made must be compatible with the pumping fluid. Common materials include carbon, ceramic, and various elastomers. Choose a seal material that:
- Provides thermal stability under the expected operating range.
- Can endure exposure to the specific chemicals of the pumped fluid. For example, if the fluid is acidic, you may need seals made from specialized materials to prevent corrosion.
Expected Lifespan and Reliability Needs
Consideration of the expected lifespan of the mechanical seal is essential for minimizing downtime and maintenance costs. High-frequency operations or services that are critical to the production process may require seals that offer higher reliability, such as double or cartridge seals. Analyze your operational needs, including:
- Expected Service Life: Evaluate the seal’s durability in relation to the scheduled maintenance cycles of your *pump*. Seals with longer lifespans may have higher upfront costs but can lead to overall savings on maintenance.
- Criticality of Application: For critical applications where leakage can have severe consequences, investing in high-quality seals is advisable.
Cost Considerations and Budget Constraints
Finally, while it’s important to consider the cost of a mechanical seal, it should not be the sole factor in your decision-making process. Evaluate the total cost of ownership, which includes:
- Initial Purchase Price: While cheaper seals may seem attractive, they might not perform under demanding conditions leading to more frequent replacements.
- Long-Term Maintenance Costs: Investing in premium seals can reduce maintenance frequency and labor costs, providing greater value over time.
Ultimately, thoroughly evaluating all these factors will guide you toward selecting the appropriate mechanical seal that meets the specific needs of your *pump* and its operation, ensuring enhanced efficiency and longevity of your industrial pumps.
Installation and Maintenance Best Practices
Proper installation and ongoing maintenance of mechanical seals are critical to ensuring the reliable operation of your pump. Following best practices not only helps to prevent issues and prolong the life of the mechanical seals but also enhances the overall efficiency of the pump system. Below are several best practices to keep in mind during installation and throughout the lifespan of mechanical seals.
Installation Best Practices
1. Preparation of Components:
– Ensure that all surfaces are clean and free from debris, dirt, or old sealant material. A clean installation surface promotes better sealing and reduces the risk of leaks.
2. Inspect the Shaft and Housing:
– Before installation, inspect the pump shaft and housing for any signs of wear or damage. Any imperfections can compromise the seal integrity and lead to premature failure.
3. Alignment:
– Proper alignment of the pump shaft and mechanical seal components is essential. Misalignment can cause uneven wear and increase the risk of operational failure. Utilize alignment tools if necessary, and ensure that the components are installed squarely.
4. Follow Manufacturer Specifications:
– Always adhere to the manufacturer’s installation instructions. Each type of mechanical seal may have specific requirements regarding installation torque, orientation, and the use of lubricants or sealants.
5. Use Proper Torque Values:
– When tightening bolts or set screws, follow the recommended torque values to avoid over-compression, which can damage the sealing surfaces.
6. Fluid Compatibility:
– Ensure that the pump fluid is compatible with the materials of the mechanical seal. This consideration is vital during both installation and the operational phase to prevent degradation of the seal and fluid leakage.
Maintenance Best Practices
1. Regular Monitoring:
– Schedule routine inspections of the mechanical seals and the pump. Look for signs of leakage or abnormal wear patterns, which can indicate underlying issues.
2. Temperature and Pressure Checks:
– Continuously monitor the operating temperature and pressure of the pump. Sudden spikes in these parameters can affect seal performance. If you observe conditions exceeding the manufacturer’s specifications, address them promptly.
3. Lubrication:
– Ensure that the mechanical seal is adequately lubricated. In many cases, the fluid being pumped provides sufficient lubrication. However, for some applications, external lubricants may be required to prevent dry running, which can cause heat buildup and damage.
4. Replace Worn Components:
– During maintenance checks, replace any worn components of the mechanical seal promptly. Delaying replacement can result in severe leakages or pump failure.
5. Training Personnel:
– Train operational personnel on the importance of mechanical seal maintenance. Awareness of practices that could lead to seal or pump failure can enhance reliability and efficiency.
6. Record Keeping:
– Keep detailed logs of seal installations, replacements, and maintenance routines. This information can help track performance trends and facilitate timely interventions or upgrades.
By adhering to these installation and maintenance best practices, you can optimize the performance and lifespan of your mechanical seals, ultimately enhancing the overall reliability of your pump system.
Common Issues and Troubleshooting Tips
Ensuring the reliability and performance of mechanical seals is critical in maximizing the efficiency of your pump system. Despite meeting the right selection criteria, mechanical seals may encounter various issues during operation. Familiarity with common problems can help operators detect and troubleshoot these issues effectively, thereby maintaining the functionality of industrial pumps.
One prevalent issue is leakage, which can occur for several reasons:
- Improper Installation: If the mechanical seal is not correctly installed, it can lead to misalignment and uneven pressure distribution on the sealing faces. This results in gaps where fluid can escape.
- Worn or Damaged Seal Faces: Over time and with continuous operation, the sealing faces can wear down due to friction, thermal cycling, or contamination. Regular inspections can help preempt seal failure.
- Fluid Incompatibility: Using a mechanical seal material that is incompatible with the pumped fluid can lead to degradation of the seal. It’s crucial to ensure that the materials used are suitable for the specific chemical properties of the fluids.
Another common challenge is excessive heat generation, which can lead to seal failure. This is often caused by:
- Insufficient Lubrication: Mechanical seals require adequate lubrication to minimize friction. If the fluid being pumped does not provide sufficient lubrication, consider using external lubricants.
- High Operating Temperatures: Continuous exposure to high temperatures can compromise the integrity of the seal materials. Monitoring operating conditions and implementing cooling measures can mitigate this problem.
Additionally, vibration can significantly affect the performance of mechanical seals. Poor pump alignment or imbalanced rotating components can create excessive vibration, leading to wear and tear on the seals. Steps to address this include:
- Alignment Checks: Ensure proper alignment of the pump and motor during installation and routinely check for any misalignment that could escalate.
- Dynamic Balancing: Implement dynamic balancing procedures for rotating components to minimize vibrations and their impact on mechanical seals.
Operators should also be aware of potential contamination issues that may impact seal performance. Contaminants in the pumping fluid, such as dirt or debris, can damage mechanical seals. Implementing filtration systems can help keep contaminants at bay.
To effectively troubleshoot these issues, it is essential to maintain a detailed record of the pump’s operational performance, including:
- Monitoring the performance data consistently for any changes in temperature, pressure, or flow rates.
- Keeping logs of seal installation dates, material specifications, and maintenance activities.
- Establishing a routine inspection schedule for seals to catch wear and tear early.
By staying proactive in addressing these common issues and performing regular maintenance, operators can extend the lifespan of mechanical seals, reduce the risk of pump failures, and ensure that industrial pumps remain efficient and reliable in their operations.
