Pump suction strainers are vital accessories in various pumping systems, used to filter out debris and prevent the introduction of particles large enough to cause damage or inefficiency to the pump and downstream equipment. There are several different types of suction strainers available, each suited to specific applications and environmental conditions. Here’s an overview of some common types:

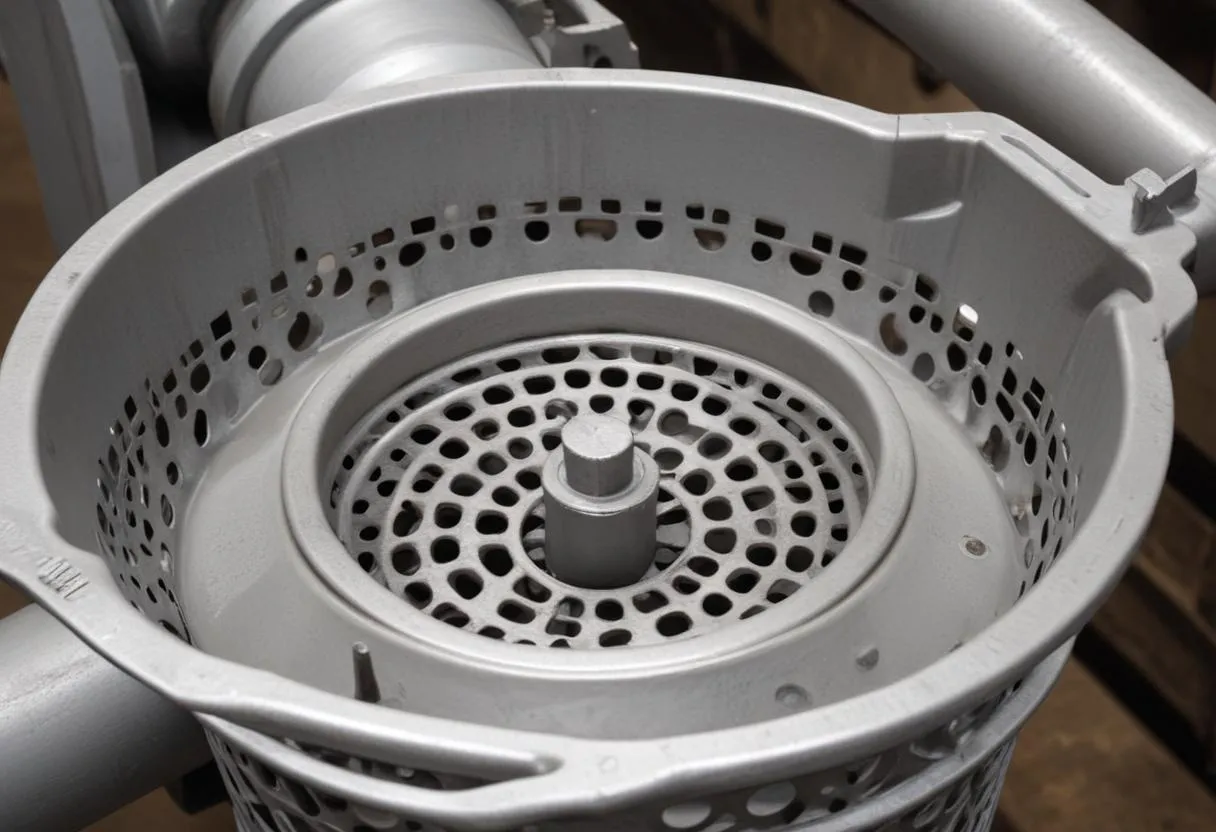

1. Basket Strainers: These strainers are known for their large straining capacity and low pressure drop across the cleaning surface. They are generally used in applications where large amounts of debris are expected and are optimal for easy maintenance and cleaning. Basket strainers are typically installed in a pump’s suction line and are made from a variety of materials such as stainless steel and brass.
2. Y-Strainers: Named after their shape, Y-strainers are used in pipelines to protect pumps from particles that may cause damage. They are more compact compared to basket strainers, making them suitable for space-constrained environments. Although they have a lower dirt-holding capacity, Y-strainers are effective for applications where particles are small to moderate in size.
3. T-Strainers: Similar to Y-strainers, T-strainers also feature a compact design but differ in body configuration. These are often used when a larger screening area is necessary than what a Y-strainer can provide. They are easier to install and generally utilized in high-pressure applications.
4. Cone Strainers: These are temporary strainers that are typically used during the start-up phase of systems to capture any excess residue left in pipes. The design is cone-shaped, optimizing the flow and capture of debris efficiently. Cone strainers are generally used until the system is deemed clear, after which they are removed or replaced with more permanent straining solutions.
5. Magnetic Strainers: Designed to capture not only non-metallic particles but also ferrous metals, magnetic strainers use a magnetic element or grid to attract and hold onto metallic debris. This type is especially useful in systems where the prevention of even the smallest metallic particle is critical.
6. Self-Cleaning Strainers: These strainers are ideal for applications where maintenance access is difficult or systems that require continuous flow without interruptions. Self-cleaning strainers use a cleaning disc or brush that automatically removes the debris collected on the strainer element.
Comparison Chart:
| Type | Design | Capacity | Preferred Use |
|---|---|---|---|
| Basket | Simple, robust | High | Heavy debris applications |
| Y-Strainer | Compact | Low to moderate | Space-limited areas |
| T-Strainer | Compact, increased screen area | Moderate to high | High pressure systems |
| Cone | Temporary, cone-shaped | Moderate | Initial system start-up |
| Magnetic | Includes magnetic element | Moderate | Systems requiring ferrous particle removal |
| Self-Cleaning | Automated cleaning mechanism | Varies | Continuous operation systems |
Understanding these types and their specific uses helps in selecting the right strainer for a given application, ensuring effective protection and efficient operation of pumping systems.
Benefits of using suction strainers in pump systems
The introduction of suction strainers into pump systems offers a range of benefits that enhance both the performance and longevity of the equipment. Here is a detailed look at the core advantages provided by incorporating suction strainers in pump systems:
1. Protection of Pump and Downstream Components: The primary function of a suction strainer is to shield the pump and other downstream components from particles and debris. This protection helps in averting wear and tear, clogs, and other forms of damage caused by foreign particles, ultimately extending the lifespan of pump parts and reducing the need for frequent repairs.
2. Increased Efficiency: Suction strainers contribute to the overall efficiency of pump systems by ensuring that the fluid being pumped is free from particles that can cause inefficiency. By maintaining a cleaner system, the pump operates more effectively, which can lead to energy savings and optimal performance.
3. Reduced Maintenance Costs: By preventing debris from entering the pump system, suction strainers minimize the frequency of maintenance required. This can significantly reduce the downtime associated with cleaning and repairing the pump, thus saving on maintenance costs.
4. Improved System Reliability: The use of suction strainers enhances the reliability of the entire system. With fewer blockages and less damage from debris, the pump system is more likely to operate smoothly without unexpected breakdowns, contributing to continuous, reliable operation.
5. Versatility Across Various Applications: Suction strainers are designed to be used in a variety of settings, from industrial applications to residential systems, handling different types of fluids and operating under various conditions. This versatility makes them an essential component in many pumping systems.
6. Customizable Filtration: Depending on the specific needs of a system, suction strainers come in various mesh sizes and materials, providing customizable filtration levels. This allows system operators to tailor the filtration process to the unique requirements of each application, ensuring optimal protection and performance.
List of Advantages:
- Protection: Guards against debris-induced damage
- Efficiency: Ensures clean fluid flow for optimal pump performance
- Maintenance: Lowers frequency and costs of upkeep
- Reliability: Promotes consistent operation without interruptions
- Versatility: Suitable for a wide range of applications and fluids
- Customization: Offers selectable filtration specifications
By integrating suction strainers into pumping systems, operators not only secure the machinery but also optimize the operational dynamics of the system. The combination of these factors contributes significantly to improving performance, reducing operational costs, and extending the operational lifespan of pump systems. Hence, it is evident that suction strainers play a crucial role in maintaining the integrity and efficiency of pump systems across various industries.
Installation and maintenance best practices for suction strainers
Installing and maintaining suction strainers properly is crucial to ensure they perform their function effectively without causing any adverse effects on the pump system. Here are some best practices for the installation and ongoing maintenance of suction strainers:
Installation Best Practices:
- Correct Sizing: Ensure that the suction strainer chosen complements the size of the pipeline and the flow rate of the pump. An improperly sized strainer can cause excessive pressure drop, leading to reduced efficiency and potential pump damage.
- Accessibility: Place the strainer in a location that is easily accessible for maintenance and inspection. This helps in performing routine checks and cleaning with minimal system disruption.
- Proper Orientation: Install the strainer according to the manufacturer’s guidelines, paying attention to the direction of flow marked on the strainer body. Incorrect orientation can hinder its effectiveness and lead to rapid wear.
- Avoid Air Pockets: Make sure that the strainer is installed in a manner that prevents air from getting trapped, as air pockets can decrease the operational efficiency of the pumping system.
Maintenance Best Practices:

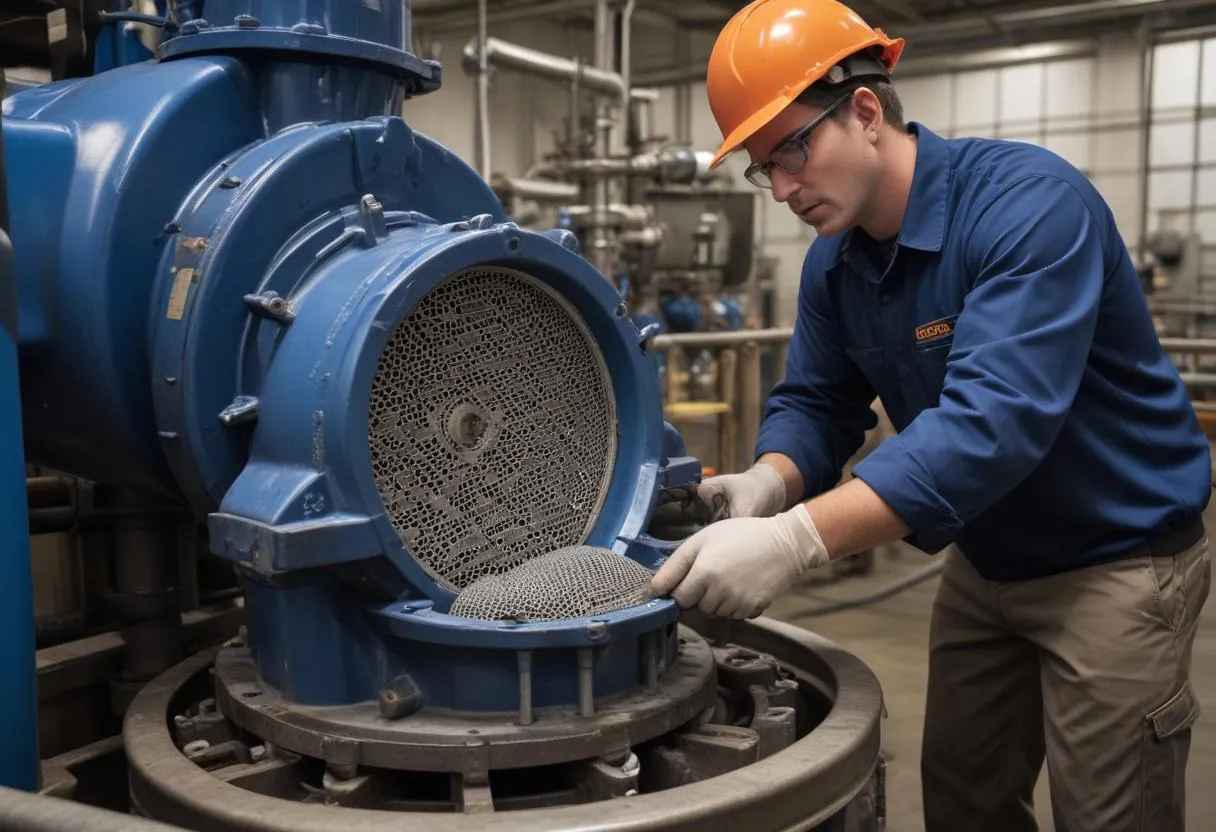

- Regular Inspection: Schedule regular inspections to check for clogs or accumulated debris in the strainer. The frequency of inspections depends on the conditions and environment in which the pump operates.
- Cleaning: Remove and clean the strainer according to the manufacturer’s instructions. For many types of strainers, cleaning involves removing the strainer element and washing it with appropriate solvents or by brushing.
- Check for Damage: During each inspection, check the strainer element and housing for any signs of wear or damage, such as cracks or erosion. Replace damaged parts immediately to prevent malfunctions.
- Record Maintenance Activities: Keep a log of all maintenance activities, noting the date, the nature of the work performed, and observations about the system’s condition. This record can help in predicting future maintenance needs and identifying recurrent issues.
Periodic Review of System Requirements: As operational conditions or fluid characteristics change over time, it may be necessary to reevaluate the suitability of the installed suction strainer. This includes assessing whether adjustment in mesh size or a different type of strainer might better serve the altered conditions.
By following these installation and maintenance guidelines, operators can ensure that suction strainers function as intended, thereby safeguarding the pumping system against debris-induced damage and minimizing downtime. Proper care and handling of strainers also contribute to the overall efficiency and longevity of the pump system. These best practices are not just about maintaining the strainer itself but also about sustaining the health of the entire pumping operation.
