Balancing multiple pumps within a system requires a fundamental understanding of pump hydraulics and the interpretation of performance curves. Each pump within a system has its own unique performance curve, which graphically represents how that pump behaves under different conditions. This curve is critical for predicting pump performance in terms of flow rate, pressure head, and efficiency, which are influenced by changes in the pump speed, impeller diameter, and the characteristics of the fluid being pumped.
The typical performance curve of a pump will show the relationship between the flow rate (usually measured in gallons per minute, GPM) and the head (measured in feet or meters). Additionally, these curves often include lines representing the pump efficiency and power consumption, providing critical insights into the operational cost and energy efficiency at various points along the curve.
Interpreting Performance Curves
- Flow Rate vs. Head: This primary curve illustrates how the flow rate decreases as the resistance (head) increases. Pumps are designed to operate efficiently at a specific point on this curve known as the Best Efficiency Point (BEP).
- Efficiency Curves: These curves highlight the efficiency of the pump at different flow rates. Operating a pump near its BEP is crucial for minimizing energy consumption and wear.
- Power Consumption: Understanding how power requirements change with flow rate helps in planning system demands and ensuring electrical capacity is not exceeded.
NPSH (Net Positive Suction Head) and Cavitation
| NPSH Required (NPSHR) | Description |
|---|---|
| NPSHR Values | This is a measure of how much suction head is required at the pump inlet to keep the pump from cavitating. Cavitation can cause damage to the pump’s impeller and reduce its lifespan. |
Understanding NPSH is essential for the system design to ensure that the suction conditions do not cause cavitation. The available NPSH must always exceed the NPSHR to maintain a proper margin.
When dealing with multiple pumps, the interaction between the pumps’ curves becomes critical. When pumps are operated in parallel, their performance curves are effectively combined, leading to a new system curve that shows higher flow rates at any given head compared to a single pump. Conversely, when pumps are operated in series, the heads are additive at a given flow rate.
Configuring Pumps in Parallel and Series:
- In Parallel: The flow rates of each pump add up, providing higher total flow rates through the system.
- In Series: The head produced by each pump adds up, which is beneficial in applications requiring high head at moderate flows.
For optimal balance and performance in systems with multiple pumps, understanding these fundamentals and carefully analyzing performance curves is vital. This analysis ensures the pumps operate at maximum efficiency, providing not only energy savings but also prolonged equipment life.
Techniques for equalizing flow and pressure
Achieving equilibrium in flow and pressure among multiple pumps in a system is vital for maintenance of efficiency and longevity of the equipment. To ensure this balance, several techniques can be employed based on the specific requirements and the setup of the system.
Use of Balancing Valves: The installation of balancing valves is one effective way to manually control the flow rate through each pump. These valves can be adjusted to increase or decrease resistance in the system, thus altering the flow rate to match the desired system performance. Balancing valves are especially important in systems where the load conditions vary significantly.
Pump Trimming: Trimming the pump impeller, or adjusting its diameter, is another method used to balance flow and pressure in multiple pump systems. By physically altering the size of the impeller, the pump’s performance curve is shifted, allowing it to more effectively match the required system curve. This method is beneficial as it permanently adjusts the pump’s characteristics to suit the specific system demands.
Speed Control: Variable Frequency Drives (VFDs) are increasingly used in modern pumping systems for real-time control of pump speed. VFDs adjust the motor speed to vary the pump output, directly affecting both flow and pressure within the system. This dynamic adjustment is crucial for systems experiencing variable demand conditions, and it helps in reducing energy consumption by allowing pumps to operate closer to their Best Efficiency Point (BEP).
Sequential Pump Operation: In systems where demand frequently changes, sequential operation of pumps can be a suitable strategy. This technique involves turning pumps on or off in sequence to meet the required flow rates and system pressures. It avoids the need for all pumps to run simultaneously at low efficiency, thereby saving energy and reducing wear.
Synchronization of Pump Controls: For systems with complex configurations, synchronization of pump controls using advanced automation systems can optimize performance. These systems use sensors and software to monitor various parameters like flow rates and pressures, making adjustments to pump operations in real-time to maintain balance.
System Monitoring and Feedback Loops: Continuous monitoring through sensors integrated with feedback systems allows for the adjustments to be made automatically based on real-time data. This approach is useful for maintaining optimal operation without constant human intervention.
Here’s a simple reference table to summarize the tools and techniques used:
| Technique | Primary Benefit | Use Case |
|---|---|---|
| Balancing Valves | Manual control of flow | Variable load conditions |
| Pump Trimming | Permanent adjustment of pump curve | Fixed adjustments to match system demand |
| Speed Control (VFDs) | Real-time variable speed adjustment | Energy efficiency and dynamic demand |
| Sequential Operation | Energy efficiency in variable demand systems | Systems with significant load fluctuations |
| Synchronization of Controls | Optimal balance and efficiency | Complex systems requiring high coordination |
| Monitoring and Feedback | Continuous optimization | Highly automated and critical systems |
In implementing these techniques, it’s important for engineers to consider the specific characteristics and requirements of each pump system to select the most appropriate solutions. This thoughtful approach not only enhances system reliability but also maximizes operational efficiency.
Maintenance and monitoring for optimal operation
Maintenance Schedules
Maintenance is a critical aspect of keeping multiple pump systems running smoothly. Implementing a comprehensive maintenance schedule is essential for ensuring that each component functions efficaciently and reliably. This schedule should include routine inspections, performance testing, lubrication, and replacements of worn-out parts.
Routine Inspections and Performance Testing: Regular inspections are vital to detect anomalies early, which can prevent damage and avoid costly repairs. Performance testing, on the other hand, should be conducted to ensure that pumps are operating at their expected performance levels. Any deviations from normative performance can indicate underlying issues such as impeller wear or seal failure.
Lubrication: Proper lubrication of pump bearings and seals is critical to reduce friction and wear, thus prolonging the life of the pumps. The type of lubricant and the frequency of application should be specified based on the manufacturer’s recommendations and the environmental conditions of the pump location.
Part Replacement: Worn-out parts not only decrease pump efficiency but can also lead to system failure. Parts commonly requiring replacements include seals, bearings, and O-rings. It’s important to use high-quality replacements to maintain optimal performance and safety standards.
Monitoring Tools and Techniques
Continuous monitoring tools play a pivotal role in maintenance by providing real-time data on pump operation. This data can alert operators to potential issues before they become significant problems. Here are some key tools and techniques used in monitoring multiple pump systems:
- Vibration Analysis: Excessive vibration can be a sign of misalignment, bearing failure, or other mechanical issues. Regular vibration analysis helps in diagnosing these problems early.

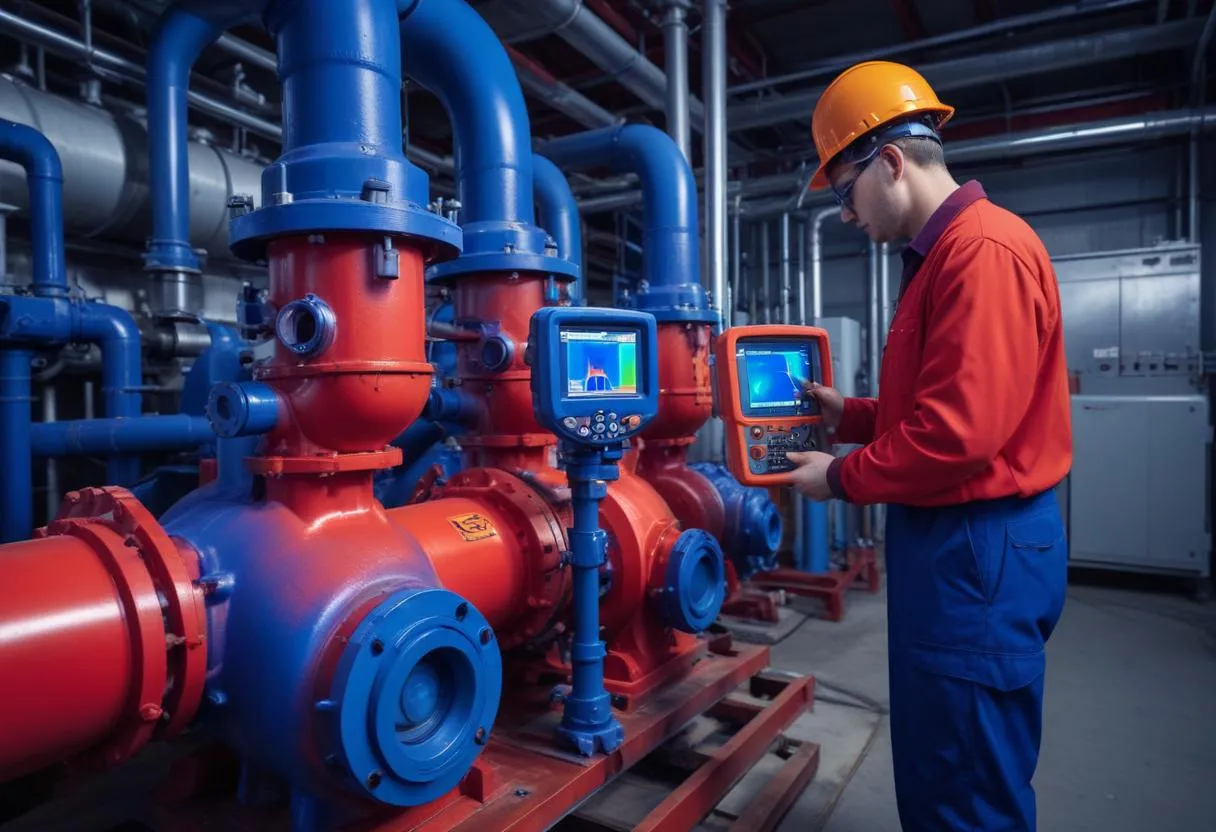

- Thermal Imaging: Using infrared cameras to inspect pumps can help detect overheating parts, which may signal lubrication issues or bearing overloads.
- Pressure and Flow Sensors: Monitoring pressure and flow within the system can provide insights into the pump efficiency and alert to changes in system dynamics that might require adjustments.
- Acoustic Monitoring: Unusual noises in pump operations can be early indicators of issues like cavitation or misalignment. Acoustic sensors help in catching these anomalies.
Advanced Predictive Maintenance:
Advances in predictive maintenance technologies allow for a more proactive approach. Utilizing machine learning and AI, predictive systems analyze data from sensors and predict when maintenance should be performed based on actual conditions rather than predetermined schedules. This not only enhances the operating efficiency but also helps in extending the lifespan of pumps by preventing undue stress and wear.
Implementing these advanced monitoring techniques and maintaining a disciplined maintenance schedule ensures that each pump in a system operates within its design specifications, thereby achieving optimal performance, reliability, and longevity. This disciplined approach also contributes significantly to energy conservation and operational cost savings in long-term system operations.
