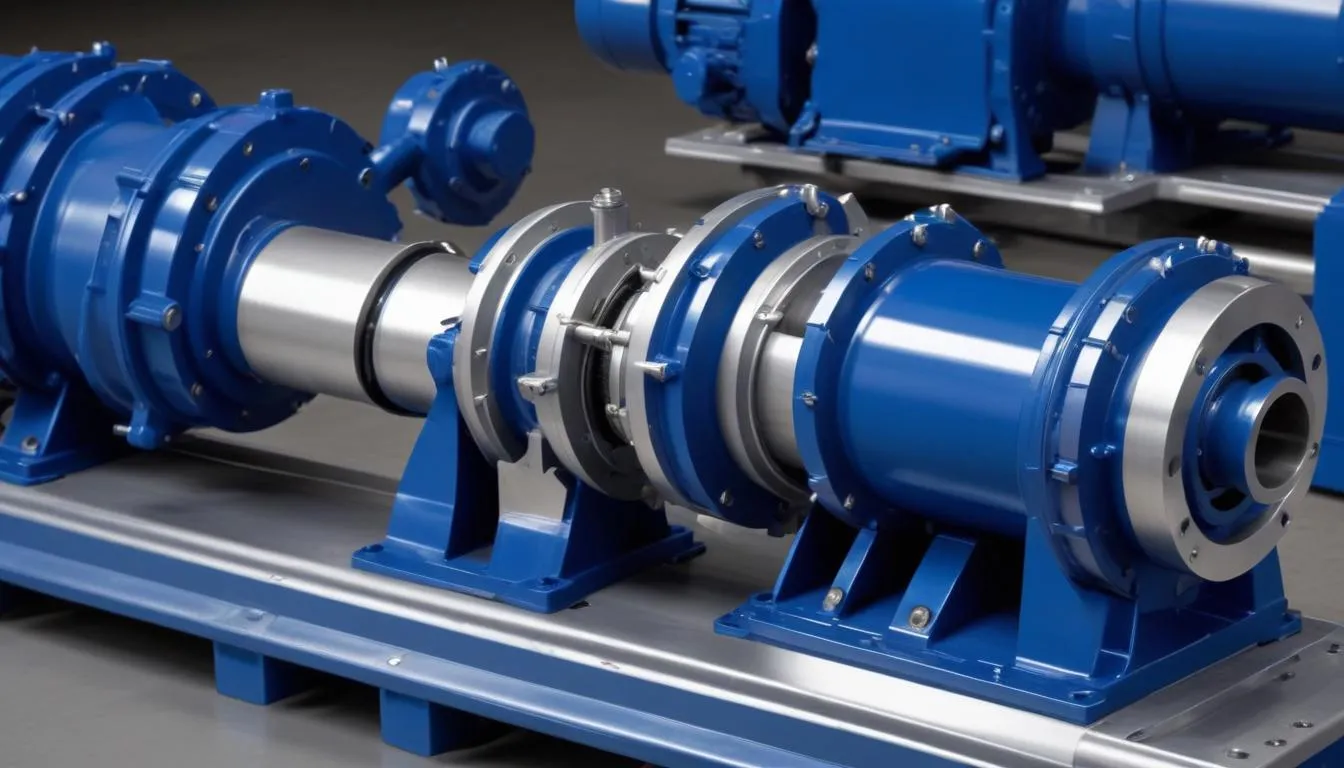

A progressive cavity pump is a type of positive displacement pump that consists of a helical rotor and a stator with a single or multiple helical grooves. The rotor, which is typically made of metal or plastic, rotates within the fixed stator, creating cavities that trap and move fluid through the pump. This design allows for the transport of fluids with varying viscosities, including high-viscosity liquids and those containing solids, making it versatile for numerous applications.
The operation of a progressive cavity pump is characterized by its ability to provide a steady and uniform flow, regardless of changes in pressure. As the rotor turns, it creates a series of progressive cavities that continuously move the fluid from the inlet to the outlet. This mechanism is particularly advantageous for pumping non-n Newtonian fluids, slurries, and emulsions. The pump’s efficiency stems from its low shear and gentle handling of the materials, which helps in preserving the integrity of sensitive fluids.
The design of the rotor and stator can be customized depending on the specific application and operational requirements, allowing for variations in size, material compatibility, and performance specifications. Progressive cavity pumps are also known for their ability to run dry without significant damage, making them suitable for applications where the potential for fluid loss may occur.
In summary, a progressive cavity pump is a highly efficient and adaptable pumping solution used in many industries, characterized by its unique rotor-stator mechanism, which allows for reliable fluid movement across a wide range of conditions.
Advantages and disadvantages of progressive cavity pumps
Progressive cavity pumps offer a unique set of advantages and disadvantages that make them suitable for certain applications while posing challenges for others.
One of the primary advantages of these pumps is their ability to handle a wide variety of fluids, including those with high viscosity or containing solids. Their design allows for consistent flow rates regardless of the pressure variations that may occur in the system. This quality is particularly valuable in industries like wastewater treatment, food processing, and oil and gas, where the materials being pumped can differ significantly in density and viscosity.
Another notable advantage is the pump’s gentle handling of fluids. The low shear characteristics of progressive cavity pumps help preserve fluid integrity, which is essential when dealing with sensitive materials like paints, coatings, and biological slurries. Additionally, the ability to run dry without sustaining damage means that these pumps can operate in conditions where other types may fail, thereby enhancing their reliability and reducing downtime for maintenance.
However, progressive cavity pumps also come with certain disadvantages that must be taken into account. One significant drawback is the initial cost and maintenance associated with their rotor and stator components. As these parts can wear out over time, requiring replacement, this can lead to higher operational costs, particularly in applications with abrasive or high-solid-content fluids.
Moreover, the flow rates of progressive cavity pumps may be lower compared to centrifugal pumps, which can limit their application in scenarios where high flow rates are necessary. Additionally, the pump’s sensitivity to certain operational conditions, such as temperature variations and system pressure, may lead to challenges in maintaining optimal performance.
In summary, while progressive cavity pumps are valued for their flexibility and reliability in handling challenging fluids, their cost of maintenance and operational limitations can impact their applicability in specific situations. The decision to utilize progressive cavity pumps should be made with a thorough understanding of these advantages and disadvantages, considering the specific requirements of the application at hand.
Applications of progressive cavity pumps
Progressive cavity pumps are utilized across a broad spectrum of industries due to their ability to effectively handle a variety of fluid properties and operating conditions. Some of the primary applications include:
- Oil and Gas Industry: Progressive cavity pumps are commonly employed for the transportation of crude oil and various refined products. Their capability to handle viscous fluids and slurries, including those containing solids, makes them an ideal choice for extracting oil from wells and transporting fluids through pipelines.
- Water and Wastewater Treatment: In wastewater treatment plants, these pumps are invaluable for moving sludge and biosolids due to their gentle handling of materials and consistent flow rates. They are also used for dosing chemicals and transferring water in various stages of treatment processes.
- Food and Beverage Industry: Progressive cavity pumps are extensively used in food processing applications, such as transferring sauces, pastes, and other food products. Their low shear rates help maintain the quality and texture of the products, making them suitable for sensitive food applications.
- Chemical Processing: These pumps can handle a wide range of corrosive liquids and chemicals, including acidic and alkaline solutions. Their compatibility with various materials ensures they can meet the diverse needs of chemical manufacturing processes.
- Pharmaceutical Industry: The gentle handling and precise flow control offered by progressive cavity pumps are vital in pharmaceutical applications, where maintaining the integrity of sensitive compounds is crucial. They are used for the transfer of slurries, active ingredients, and final products.
- Pulp and Paper Industry: In the paper manufacturing process, progressive cavity pumps are used to transport slurries of pulp and other fibrous materials. Their ability to handle high viscosity and solid content fluid is essential in this sector.
In addition to these key industries, progressive cavity pumps find use in various other applications such as:
- Mineral Processing: For handling slurries and other viscous fluids containing minerals.
- Textile Industry: In dyeing and finishing processes where precise fluid movement is required.
- Biotechnology: To pump biological fluids and cultures that require a careful approach to avoid damaging cells.
- Construction: For transferring grout and other viscous materials during construction projects.
Overall, the versatility of progressive cavity pumps allows them to be effectively used in applications where other types of pumps may not be efficient or feasible. Their capacity to handle challenging materials while providing consistent and reliable performance makes them a favored choice in numerous sectors.
