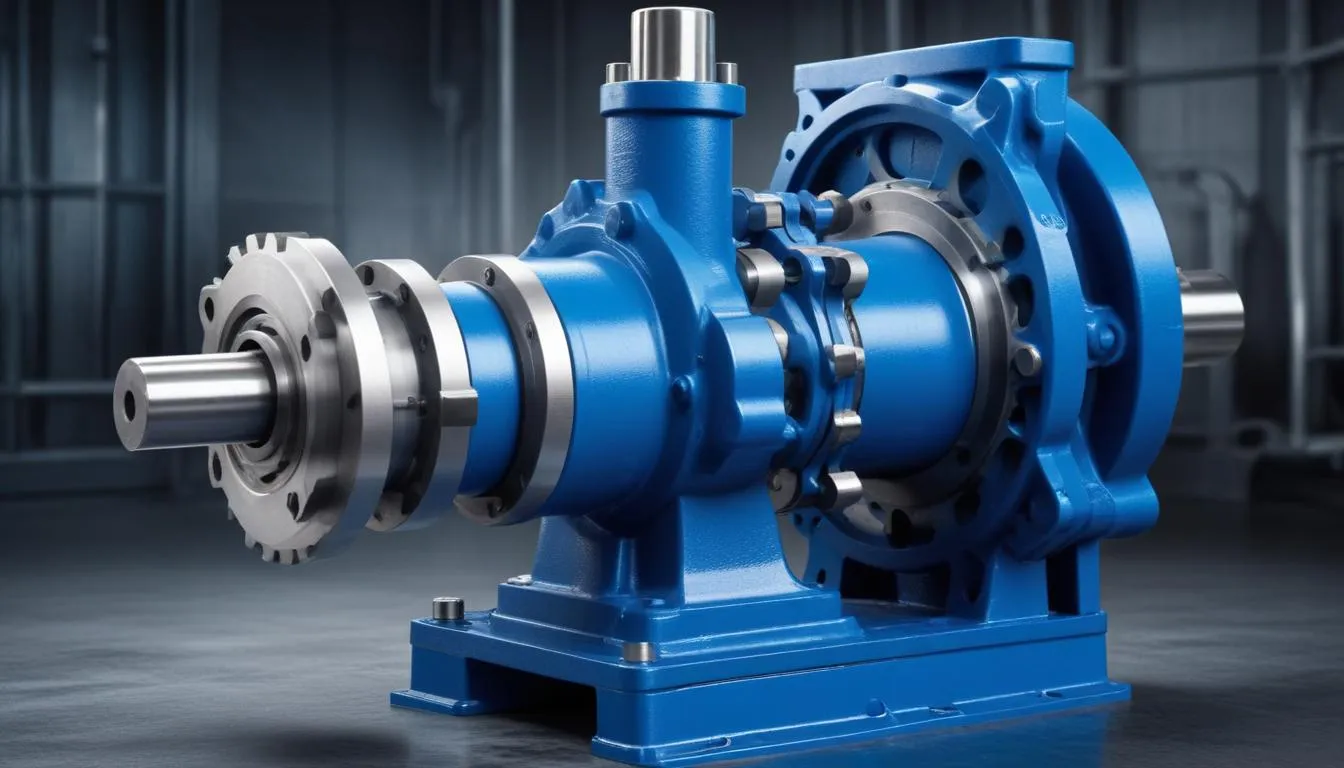

Positive displacement pumps are devices that transport fluids by trapping a fixed amount of liquid and then forcing that trapped volume into the discharge pipe. This pumping mechanism is characterized by its ability to continually move fluid in a precise volume, regardless of the pressure or flow conditions downstream.
The operation of a positive displacement pump relies on a cyclic action, which can be achieved through various mechanisms. Two of the most common designs are rotary pumps and reciprocating pumps.
- Rotary Pumps: These include gear pumps, screw pumps, and vane pumps. In these pumps, rotating elements create voids that expand to draw in fluid and then decrease to force it out. For instance, in a gear pump, two interlocking gears rotate to create a space that sucks in the fluid and then pushes it through the outlet.
- Reciprocating Pumps: These pumps utilize a back-and-forth motion of a piston or diaphragm to move the fluid. As the piston moves in one direction, it expands the chamber to draw in fluid; as it moves back, it compresses the volume to force the fluid out. A common example is the diaphragm pump, which uses a flexible diaphragm to achieve this movement.
The efficiency of positive displacement pumps is heavily influenced by their construction materials, seals, and the nature of the fluid being pumped. These pumps can handle a wide range of viscosities and may handle both non-Newtonian and caustic fluids, making them highly versatile. Unlike centrifugal pumps, which depend on fluid velocity to create flow, positive displacement pumps work by moving fluid with a mechanical action, providing a more consistent flow rate under varying conditions.
In applications where accuracy and consistency are crucial, such as dosing and metering systems, positive displacement pumps are preferred due to their ability to deliver a fixed quantity of liquid with minimal fluctuation. The inherent design allows them to generate high pressures, making them suitable for applications that require high resistance to back pressure.
Advantages and Disadvantages
The advantages of positive displacement pumps make them essential in many industrial applications, but they also come with certain disadvantages that must be considered.
One notable advantage is the ability to deliver a constant flow rate regardless of the pressure. This capability is essential in applications where consistent and precise fluid delivery is required, such as in chemical dosing, hydraulic systems, and food processing. Furthermore, positive displacement pumps are highly efficient at handling fluids with varying viscosities, including thick or slurries, which many centrifugal pumps struggle with.
Another significant benefit is their capacity to generate high pressures, enabling them to work effectively in applications that demand overcoming substantial back pressure without compromising performance. This characteristic is particularly valuable in industries such as oil and gas, where high-pressure requirements are commonplace.
Positive displacement pumps also feature a simple design that is generally easier to maintain, further increasing their operational efficiency over time. With fewer moving parts compared to other pump types, there is often less wear and tear, which contributes to reliability and longevity.
However, there are several disadvantages associated with positive displacement pumps that users must take into account. One of the primary challenges is related to variable flow conditions. These pumps can become problematic if they are throttled or restricted at the discharge, as this may lead to overpressure situations that can damage the pump or the piping system. Therefore, it is essential to incorporate appropriate relief valves or other safety mechanisms in the system design.
Additionally, positive displacement pumps can often experience pulsation in the flow, particularly in reciprocating designs. This pulsation may necessitate the use of dampeners or accumulators to smooth out the flow, adding complexity and cost to the system.
Another disadvantage is the need for positive inlet pressure. Unlike centrifugal pumps, positive displacement pumps require the fluid to be pre-pressurized before entering the pump to avoid cavitation, which can lead to pump failure. As a result, the overall system design must account for this requirement, which can complicate installations in some cases.
Moreover, maintenance can be more demanding for specific designs, particularly those that use complex sealing systems to handle aggressive or highly viscous fluids. If seals degrade, they can lead to fluid leaks, which can be hazardous depending on the nature of the liquid being pumped.
| Advantages | Disadvantages |
|---|---|
| Constant flow rate regardless of pressure | Can create high pressure if throttled |
| Efficient with a wide range of viscosities | Pulsation in flow requires dampening mechanisms |
| High-pressure capability | Requires positive inlet pressure to avoid cavitation |
| Simple design for easy maintenance | More complex maintenance for specific designs |
| Reliable and long-lasting | Potential for leaks from seal degradation |
Understanding these advantages and disadvantages enables industries to make informed decisions when selecting a pump type for their specific applications, ensuring optimal performance while managing potential challenges effectively.

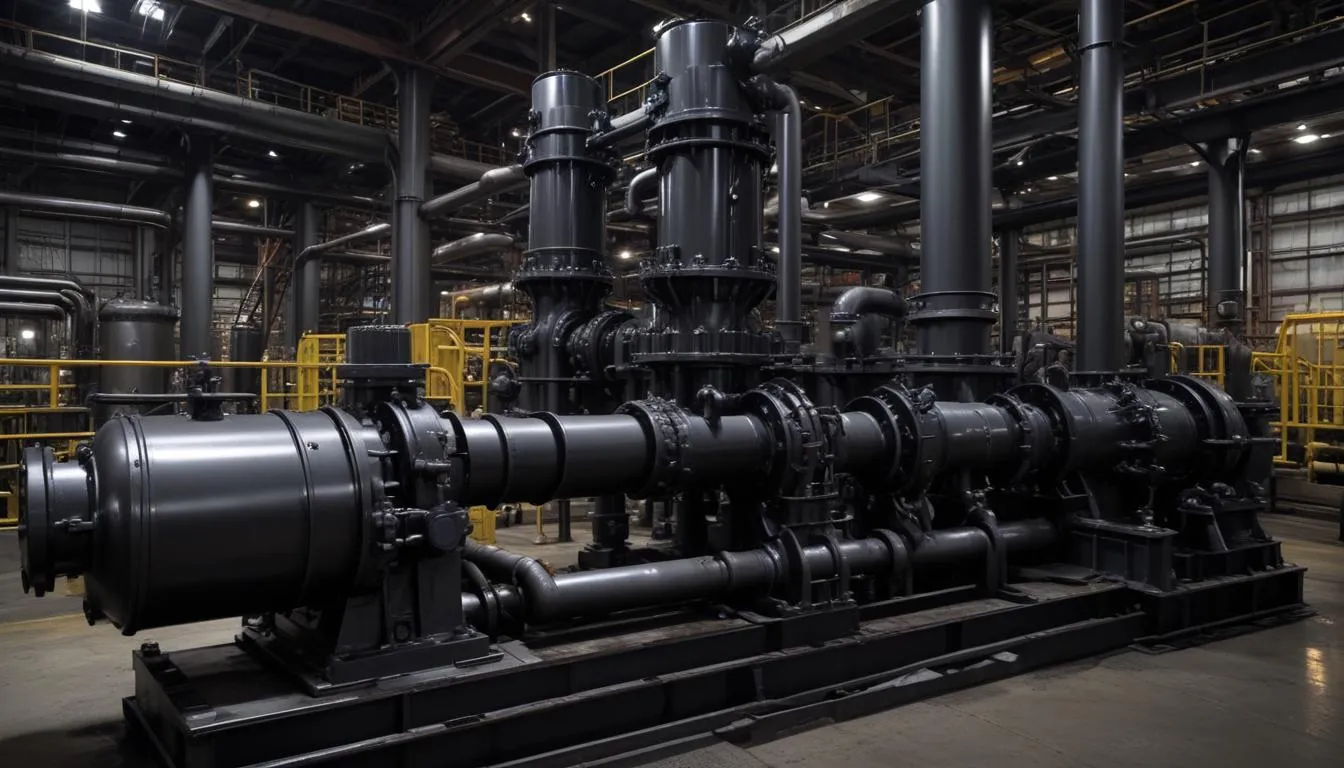

Applications in Various Industries
Positive displacement pumps find applications across various industries, leveraging their unique characteristics to meet specific operational needs. Their ability to efficiently transfer fluids of varying viscosities and to maintain a consistent flow rate make them a go-to solution in many sectors.
In the oil and gas industry, positive displacement pumps are widely utilized for the transportation of crude oil and its derivatives. These pumps handle dense and viscous fluids effectively, allowing for operations in harsh conditions. Their capability to generate high pressures is particularly valuable in drilling and extraction processes, where they facilitate the movement of fluids through extensive pipeline systems.
The chemical processing industry relies on positive displacement pumps for accurate and consistent dosing of chemicals. These pumps are essential in processes such as mixing, blending, and transferring reactive substances, where precise flow rates are crucial for product quality and safety. The ability to manage aggressive or corrosive chemicals, often found in chemical manufacturing, further increases their desirability in this sector.
In food and beverage manufacturing, positive displacement pumps serve critical roles in transferring and metering ingredients, as well as in filling packages. Their capacity to handle viscous materials, such as sauces and creams, without changing their texture or quality makes them highly suitable for this industry. Additionally, regulatory requirements surrounding hygiene and cleanliness are effectively addressed through the use of sanitary design versions of these pumps, which prevent contamination.
The pharmaceutical industry also finds extensive use of positive displacement pumps for similar dosing and transfer applications. Precise dosing is essential in pharmaceuticals, where compound consistency and accuracy can significantly influence efficacy. These pumps not only ensure accurate flow rates but also allow for the safe handling of sensitive biopharmaceuticals and vaccines, where maintaining integrity is critical.
In water and wastewater treatment, positive displacement pumps are employed for sludge handling, chemical dosing, and installation of pressure systems within treatment facilities. Their robustness and efficiency in transporting thick sludge or sludge-like mixtures make them beneficial in maintaining operational efficiency in such facilities. Moreover, the control over flow rates plays a pivotal role in optimizing chemical usage in treatment processes.
The mining industry similarly benefits from positive displacement pumps, particularly for the transportation of slurries that consist of water mixed with minerals and ores. These pumps can efficiently manage the abrasive nature of mining slurries while ensuring that high-flow and high-pressure conditions do not hinder the transportation process.
Overall, the versatility of positive displacement pumps combined with their ability to adapt to varying operational demands makes them indispensable across these diverse industries. Their adoption enhances productivity, accuracy, and safety, driving forward the efficiencies of each sector in which they are utilized.
